06CC899 30HP Industrial Cold Room Two Stage Semi Sealed Compressor
Lowering Expenses with Two-Stage Cooling
In large-scale industrial freezing and process cooling, energy consumption dominates long-term operational budgets. This high-capacity semi sealed compressor dramatically lowers running costs by utilizing an advanced two-stage compression design inside a single compact housing, splitting the 30HP workload across 4 low-pressure and 2 high-pressure cylinders. By maintaining low compression ratios per cylinder stage, the system achieves superior seasonal energy efficiency and significantly reduces overall utility bills compared to traditional single-stage booster setups.
Eco-Compliance and Direct Drop-In Installation
Transitioning commercial cooling facilities to modern eco-friendly standards requires versatile and adaptable machinery. Fully UL-approved, this flexible semi sealed compressor is optimized for environmentally compliant refrigerants including R404A and R507, as well as classic R22. Its standardized mounting dimensions and connection port specifications allow system integrators and engineering contractors to perform direct drop-in replacements with minimal piping modifications, drastically reducing installation labor and operational downtime.
Heavy Motor Protection for Extreme Loads
Unplanned refrigeration downtime can endanger high-value cargo in food processing, pharmaceutical, and cold-storage logistics. Built with a heavy-duty 255 kg cast-iron frame and a generous 9.0 L oil reservoir, this semi sealed compressor resists liquid slugging and lubrication breakdown during extreme low-temperature startups. Combined with high-flow Swedish steel valves and suction-gas motor cooling, it guarantees uninterrupted, non-stop performance even under severe high-ambient operating conditions.

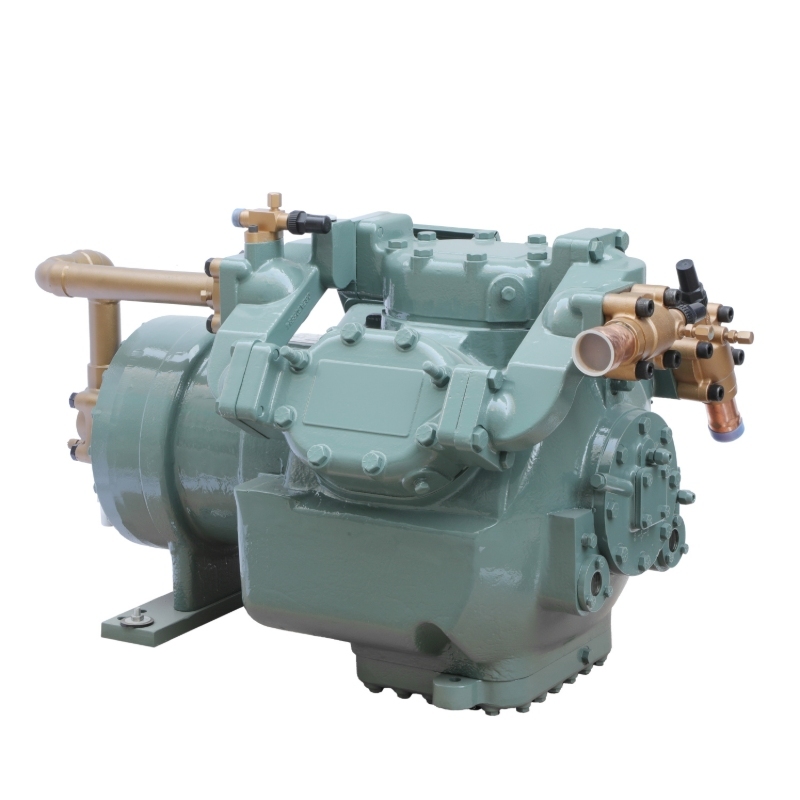

Product Image
Technical Specifications
| Model |
06CC899 |
| Nominal Power |
30 HP |
| Refrigerant Type |
R22, R404A, R507 |
| Rated Current |
58 A |
| Oil Charge |
9 L |
| Weight |
255 kg |
Company Introduction
Ruifujie is a modern industrial refrigeration supplier specializing in high-performance scroll, piston, rotary, semi-hermetic, and screw compressors, alongside complete cold storage units and ice machinery. We offer full OEM/ODM customization services to adapt equipment to regional electrical standards and localized engineering requirements. Supported by competitive factory-direct pricing, our products are exported worldwide to major international markets including Germany, Mexico, and Australia, earning trusted long-term partnerships with global contractors and equipment distributors.
Frequently Asked Questions
What are the low-stage and high-stage displacement figures for the 06CC899 at 1450 rpm?
At 1450 rpm, the 06CC899 delivers a low-pressure stage displacement of 93.6 m³/h across 4 cylinders and a high-pressure stage displacement of 46.8 m³/h across 2 cylinders.
How does internal two-stage compression lower energy consumption in low-temperature setups?
By splitting total compression across two stages inside one body, compression ratios per cylinder stage are significantly reduced, lowering operating temperatures and saving electrical power.
What eco-friendly refrigerants are approved for the 06CC899 model?
The 06CC899 compressor is UL-approved and engineered for eco-friendly refrigerants including R404A and R507, as well as traditional R22.
What is the standard production lead time for bulk orders?
Standard bulk production orders are completed and prepared for dispatch within 10 to 15 working days.
How is this 255 kg compressor unit packaged for safe ocean transport?
Each compressor is securely bolted onto a reinforced wooden pallet, wrapped in moisture-proof anti-corrosion film, and fully enclosed in a heavy-duty export plywood crate.
